Chain Tire Net Pneumatic Fenders For Ships Black Pontoon Boat Rubber Bumpers

Qualified Yokohama Type Floating Pneumatic Marine Rubber Fenders with Chain and Tire Net

Marine rubber fender also called pneumatic rubber fender, rubber fender, Yokohama fender, Yokohama floating pneumatic rubber fender,pneumatic rubber jetty, inflatable rubber ball,rubber balloon etc.Made by natural rubber and rubberized cord fabric. Today is a leading anti-collision device for marine application in the wordwide.Marine fenders has become an ideal ship protection medium against dollision among ship-to-ship (STS),ship-to-quay(STQ) and ship-to-berthing(STB),they are widely used for large tankers,vessels,docks, harbor wharfs and ocean platforms.It is easy and quick to deploy, available in many dimensions to suit clearance requirements and different size of ships.to protect the ships and docks

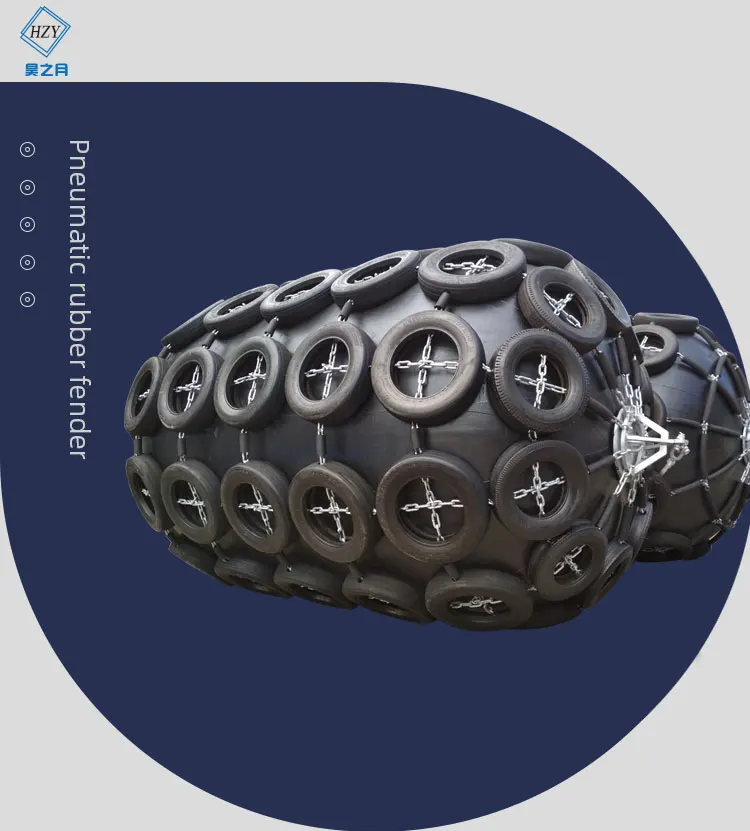

Type 1: With chain tyre net---Net type

Type 2: Without chain tyre net---Sling type

Why choose HAOZHIYUE pneumatic rubber fender?

1.Learder since 1992, with more than 20 years produce experience;

2.Best quality with 3 years guarantee period;

3.Comply with ISO17357:2002;

4.Certificates BV,CCS,LR,IRS etc available;

5.Customized different dimention according to requirements;

6.Lifespan more than 10 years;

7.Different dimension stocks, the delivery time can be within 3 days;

8.Can be deflated in transit.

9.Long time good after-sale service;

10.Professional engineer recommend suitable dimension and quantity of rubber fender.

Application

There are two typical installation type: ship to ship operation and ship to quay operation

Ship to ship operation
Generally speaking, for the light duty ship to ship operation, two contact points are enough. But for the heavy duty ship to ship operation, 1 or 2 extra pneumatic rubber fender should be used as the primary fendering to absorb the berthing energy, and keep proper stand-off distance between two ships. Meanwhile, two or more small-size fenders can be hung on the ship hull as the secondary fendering.

The pneumatic fenders should be hung by guy chains or guy ropes, which should be selected depending on the different size and weather condition. Evergreen-Maritime pneumatic fenders are supplied with two ends shackles that connect the fender body with guy chains or guy ropes.

Ship to quay operation
Pneumatic marine rubber fenders are often used for the ship to quay operation because of its excellent performance. The typical installation type is like the follow figure. The pneumatic fenders are anchored with quay by the guy chain and shackles. Meanwhile, the pneumatic fender can be floated on the water surface depend on the change of tide.5.2 ship to quay operation

Characteristics

1. Using compressed air for buffering, the pneumatic rubber fender deforms gently while being squeezed and pressed. It offers a large contact surface, low reaction force and large energy absorption.

2. When a ship is berthing at an angle, the pneumatic rubber fender can achieve oblique contact with the ship due to its unique structure, thus better protecting the ship and the dock.

3. The fender is floating on water all the time, allowing a ship to safely berthing at any time without influence from the rising and fall of tidewater and sea wave, etc. Meanwhile, floating on water ensures small friction force, which ensures no damage to ship's external coating and the rubber fender itself.
4. It is very easy for installation. Bolts and nuts are not required. The one thing we need to do is to use rope to tie the marine fender to the dock or the anchor post of a ship.

Specification and Performance of pneumatic marine rubber fender

Yokohama Pneumatic rubber fender are available from 500X1000mm to 3300X6500mm, including all the standard and no-standard specifications.

All the relevant metal accessories of pneuamtic fenders, include shackles, towing rings, swivels, chain net, are made of stainless steel, and H.D.G. which are resistant for sea water corrosion.

1. Q:What’s the guarantee for your products?

A:Guarantee period for our product is 3 years, during this period, except man-made damage, we will repair or exchange new one for free.

2. Q: Do you have stocks? In which size?

A:Yes, we have some normal size in stocks,for example dia1.2m,dia1.5m,dia2.5m,other size pls confirm with our company directly.

3. Q:Are you manufacturer or trading company?

A: We are manufacturer in this field for more than 20 years, with rich produce experience.

4. Q:We don’t know which size is suitable,can you help me?

A:No problem,pls tell us information about your ship, our engineer will recommend suitable size for you.

5. Q:What’s the delivery time?

A: Usually within 3 days after receive payment.

6. Q:What’s your payment term?

A:T/T or L/C at sight

7. Q: What’s your MOQ?

A: 1 PC.

8.Q: What’s the material of your products ?

A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.

9.Q: Is OEM service available ?

A: yes
